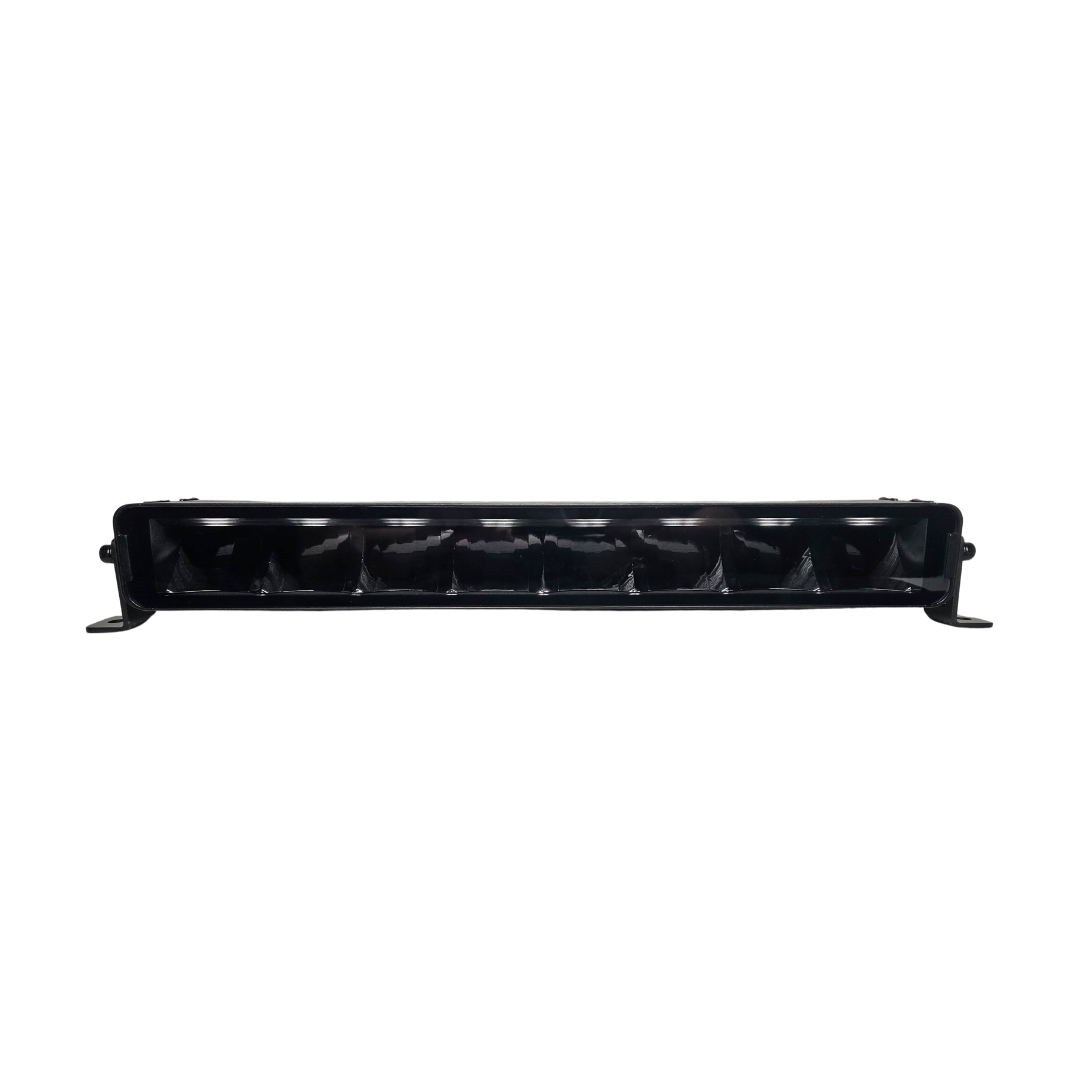

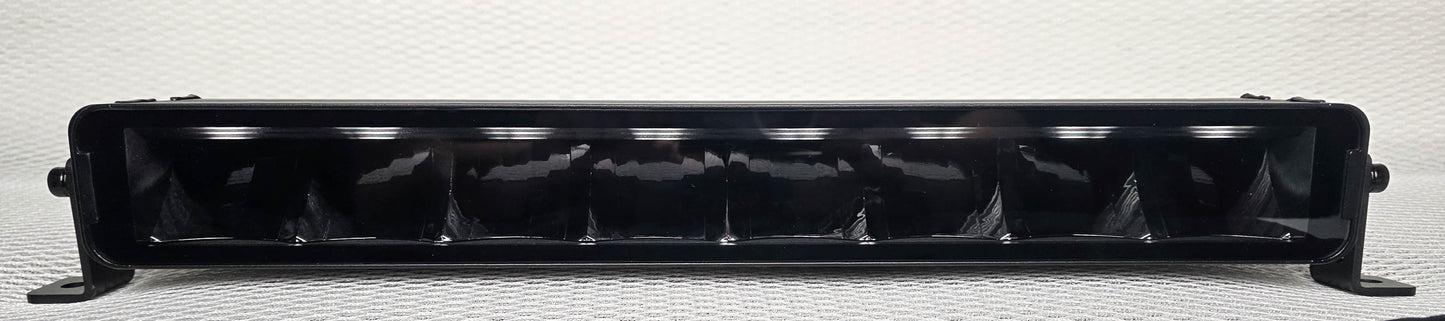

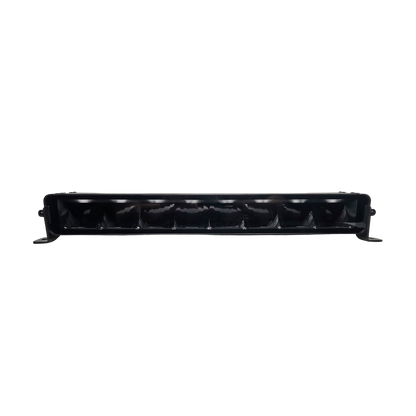

21in lightbar specs
| Model | Apex Vision 21 |
| Optical | Driving beam |
| LED Brand | 12W Lattice Power Chip |
| LEDs & Quantities | 8PCS |
| Color Temp.(CTT) | 6000K |
| Dimension | 535.4*66*78.4mm |
| Operation Temperature | -40℃---60℃ |
| Voltage | 10-30V DC |
| AMP DRAW | 6.67A@12V, 3.34A@24V |
| Theoretical Power | 96W |
| Effective Power | 79W |
| 1 Lux Effective Distance | 400m |
| Theoretical Lumens | 580meters |
| Effective Lumens | 5700 |
| Raw Material(Housing) | Aluminum 6063 |

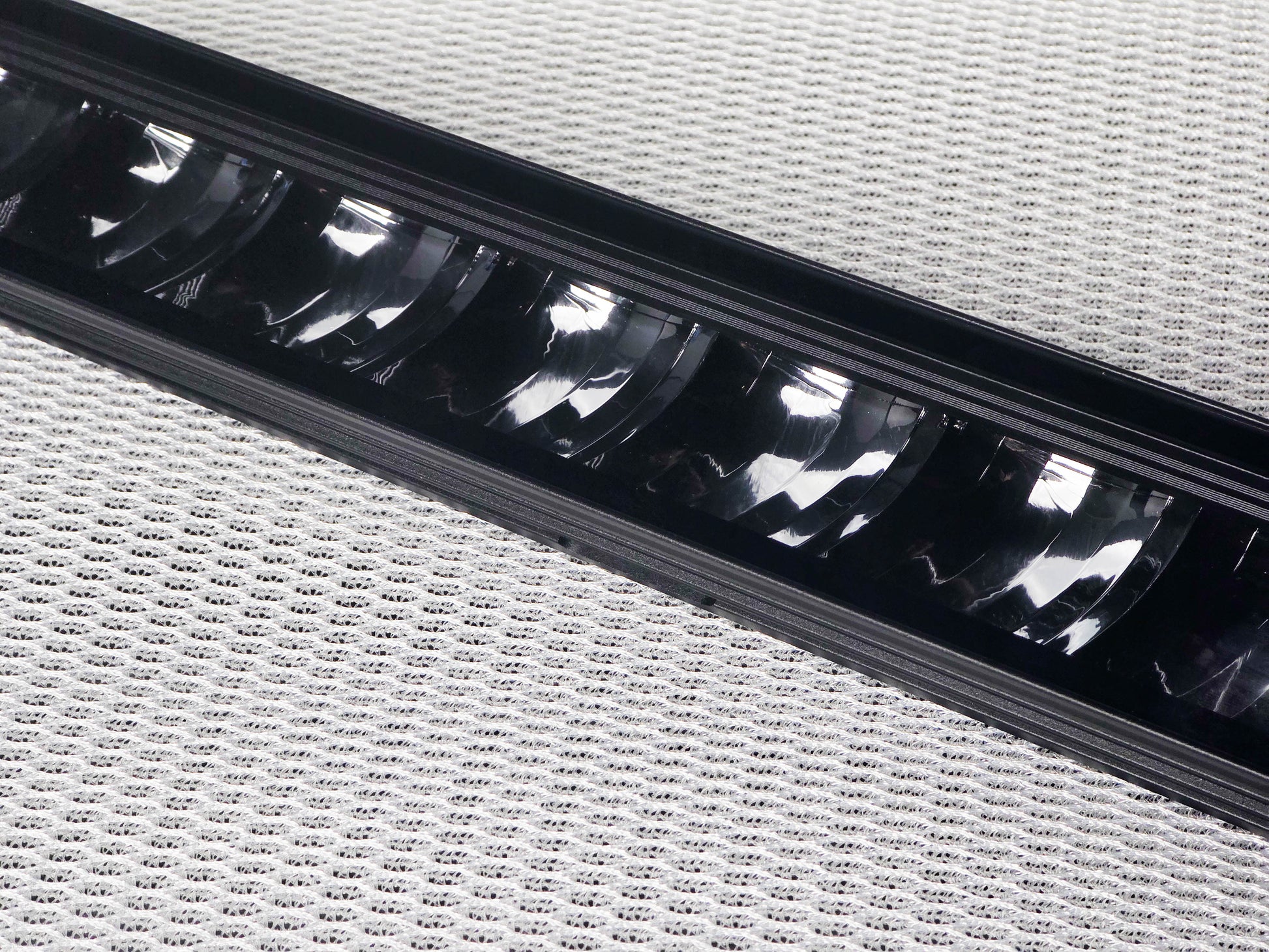

| Raw Material(lens&cup) | Polycarbonate |

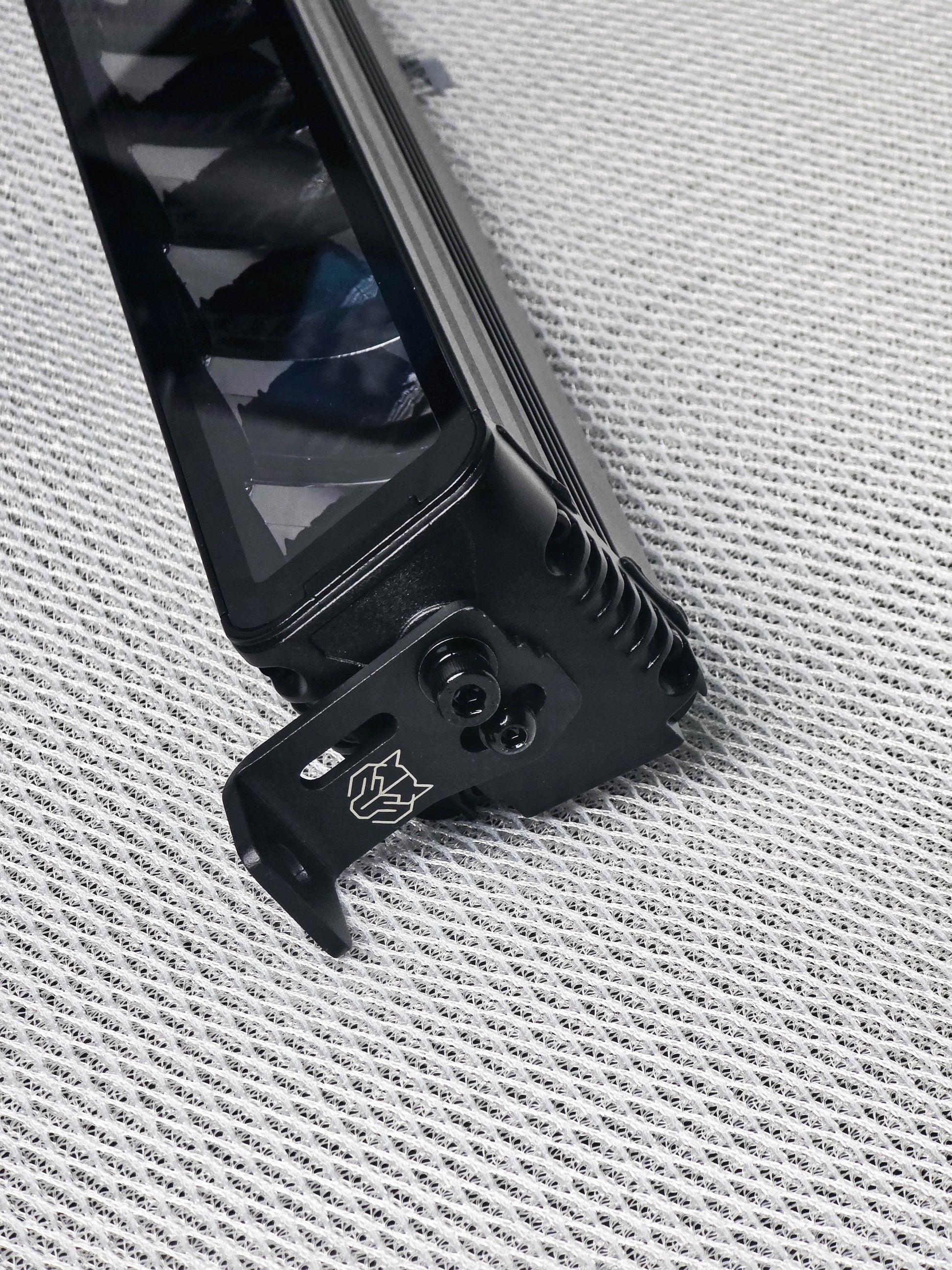

| Mounting Side Bracket | 304 Stainless Steel with Black Powder Spraying 1 set |
| Mounting Bottom Bracket | Aluminum Black Sliding Bottom Bracket 2 set |
| Waterproof | IP68 |
| Theoretical Lifespan | 50000h |
⚠️ Wiring harness kits are not included.
Extreme Lumens
IP68 Weather Proof

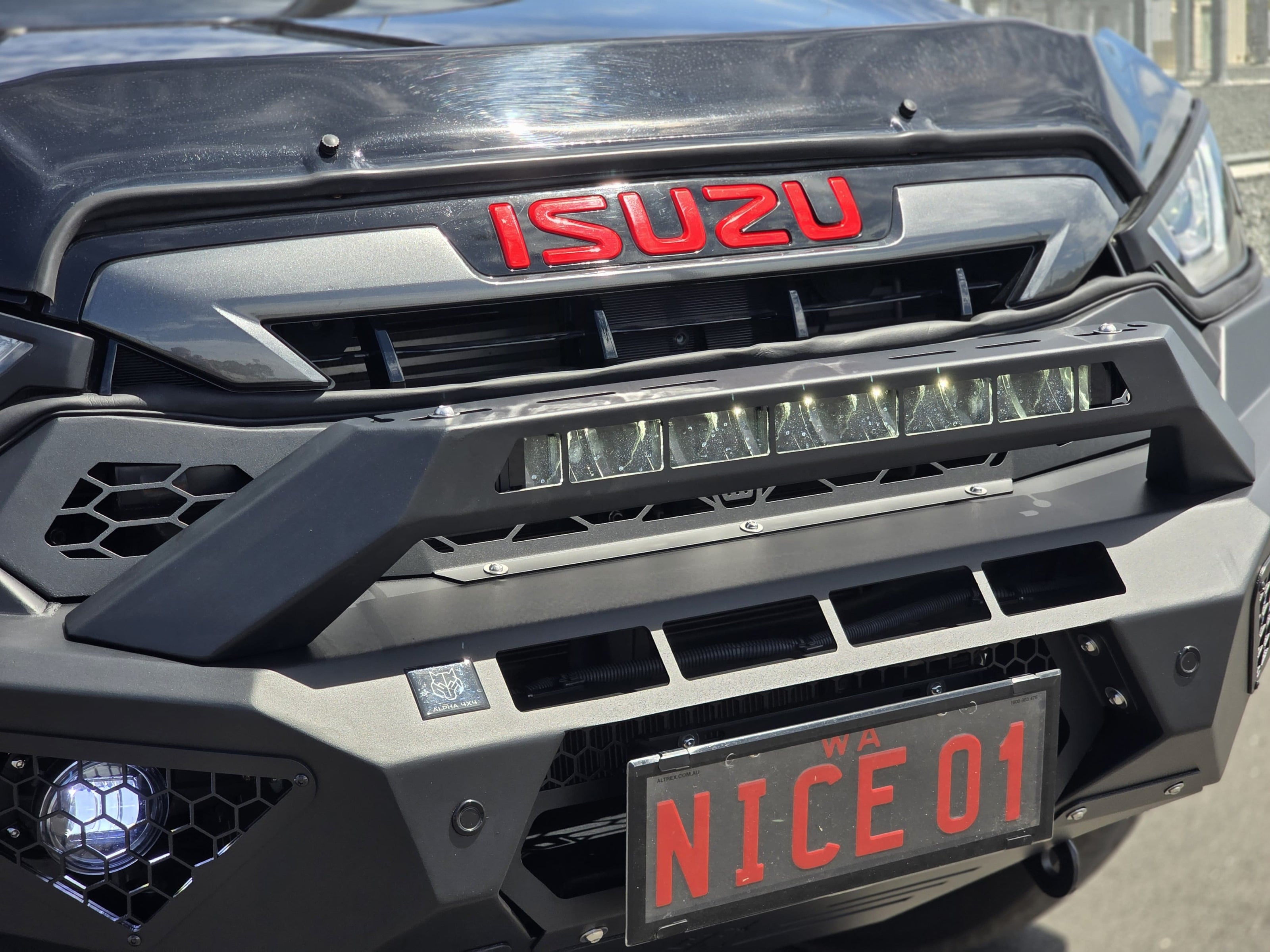

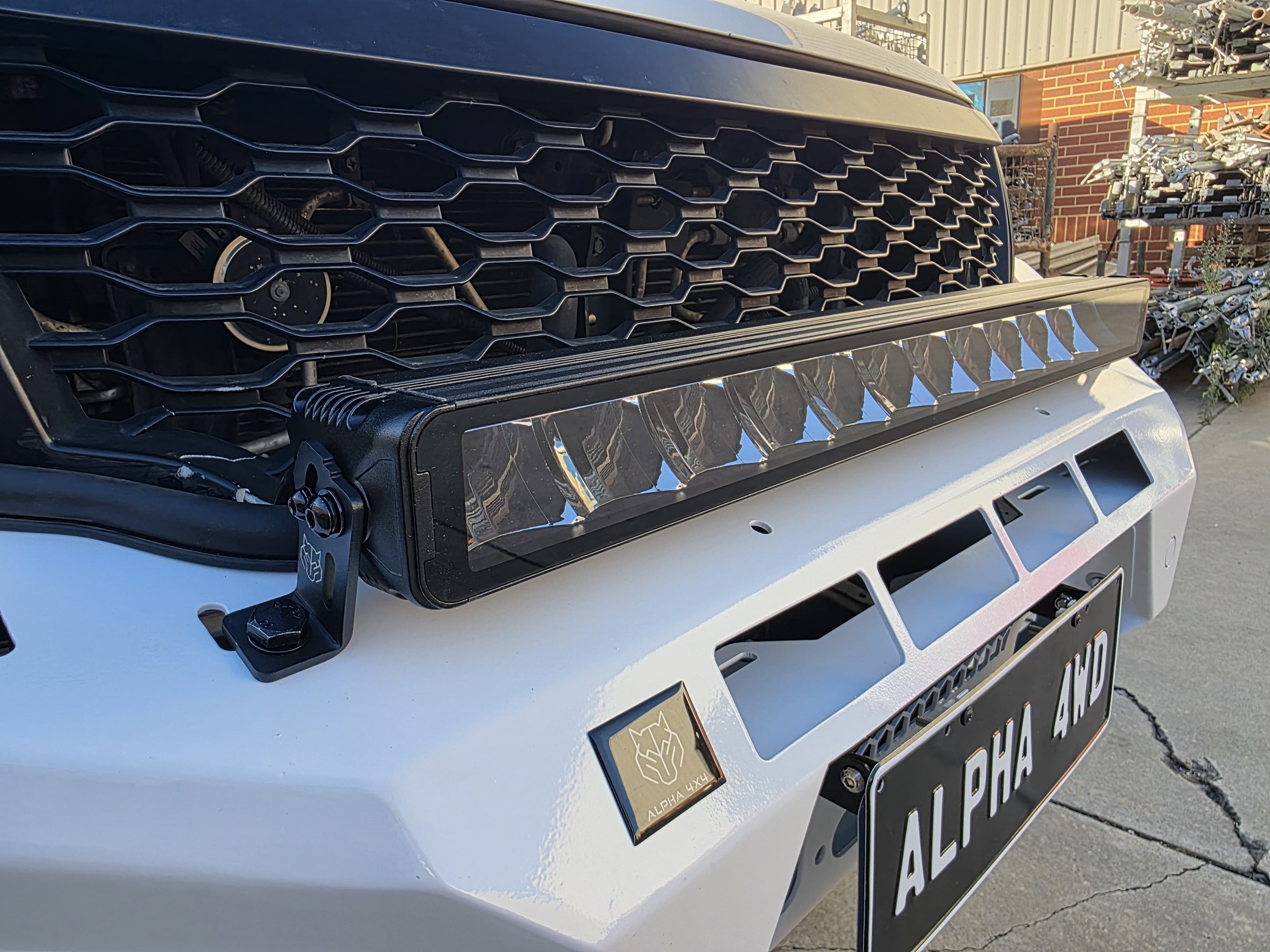

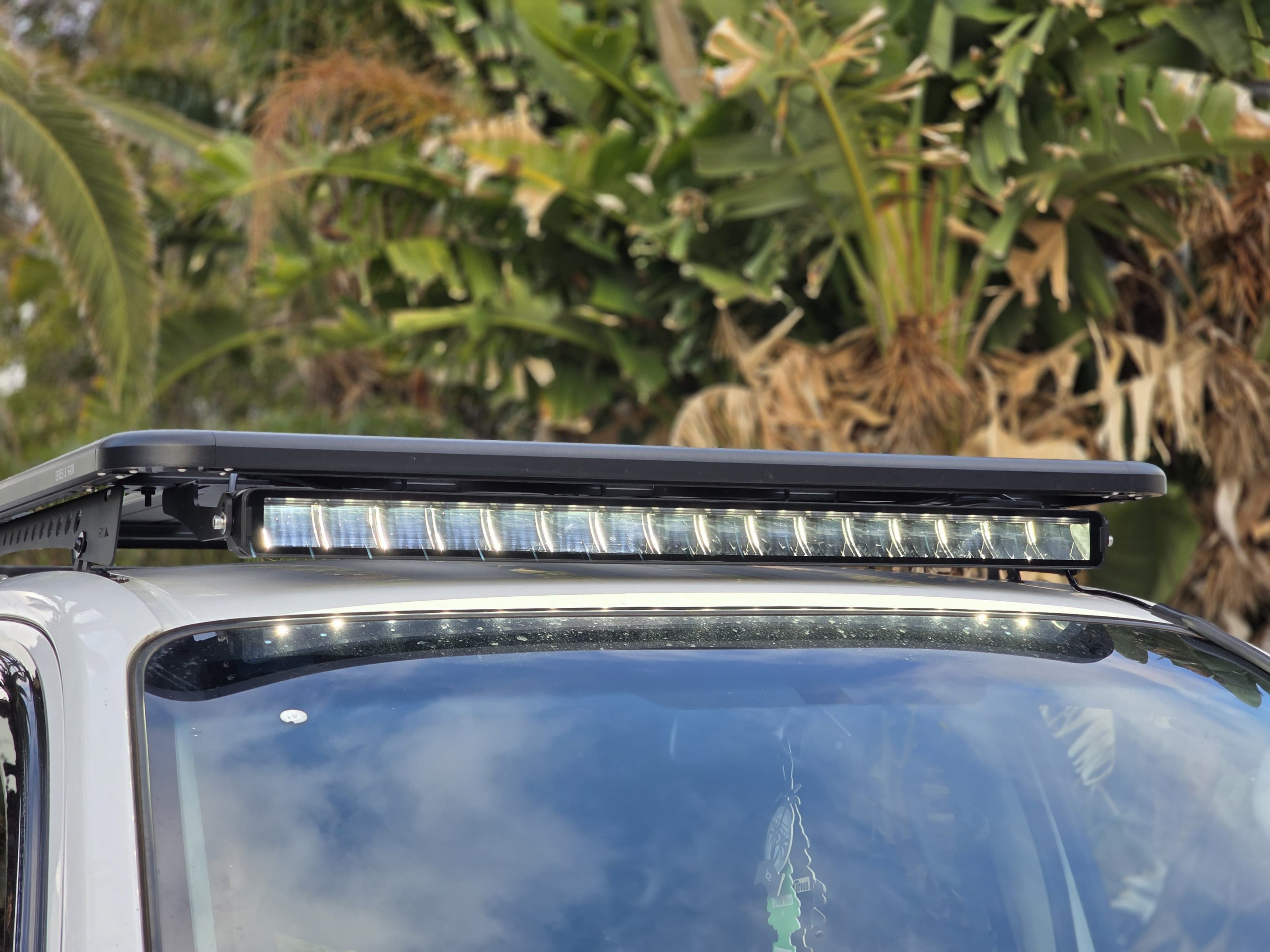

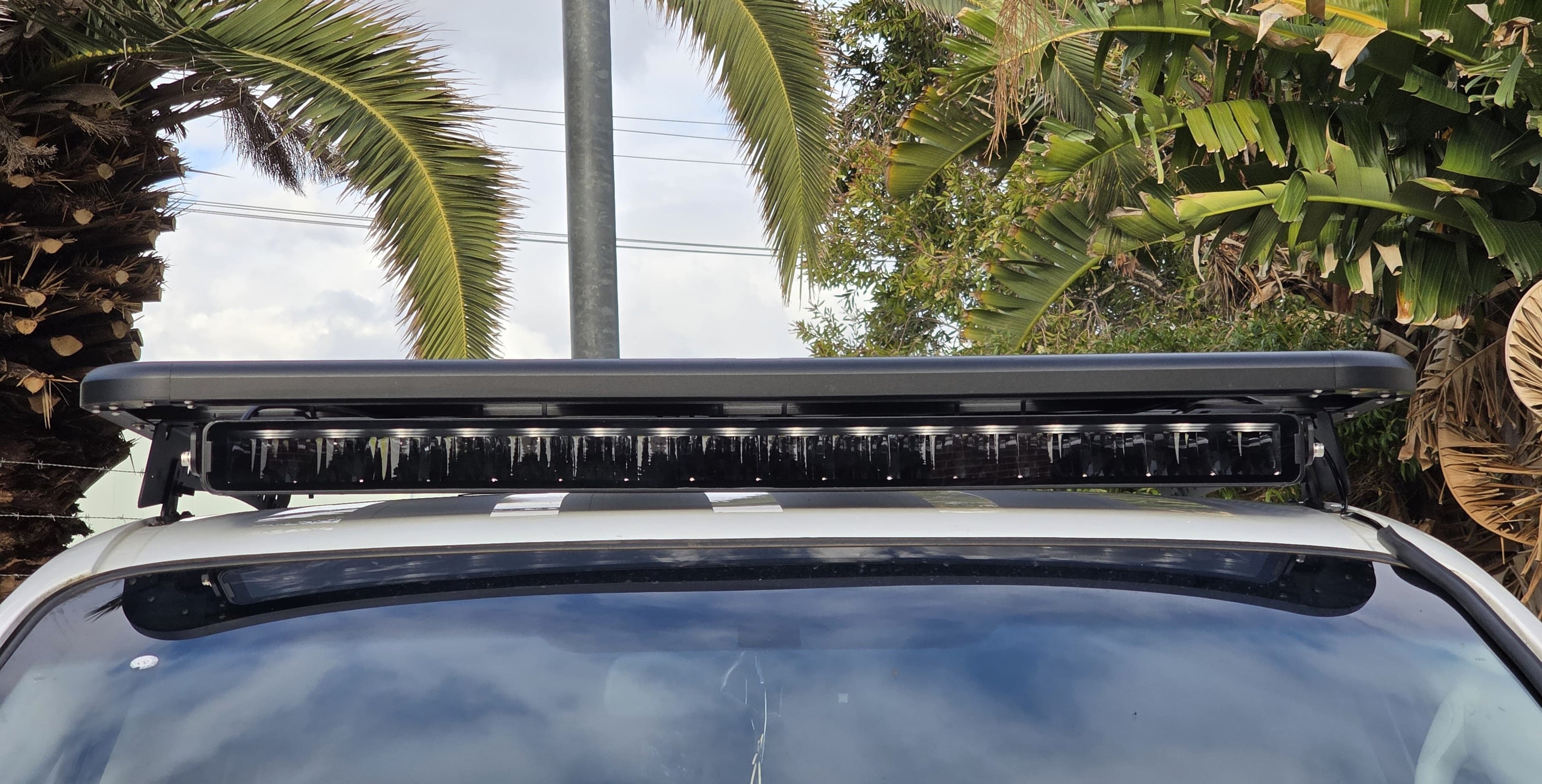

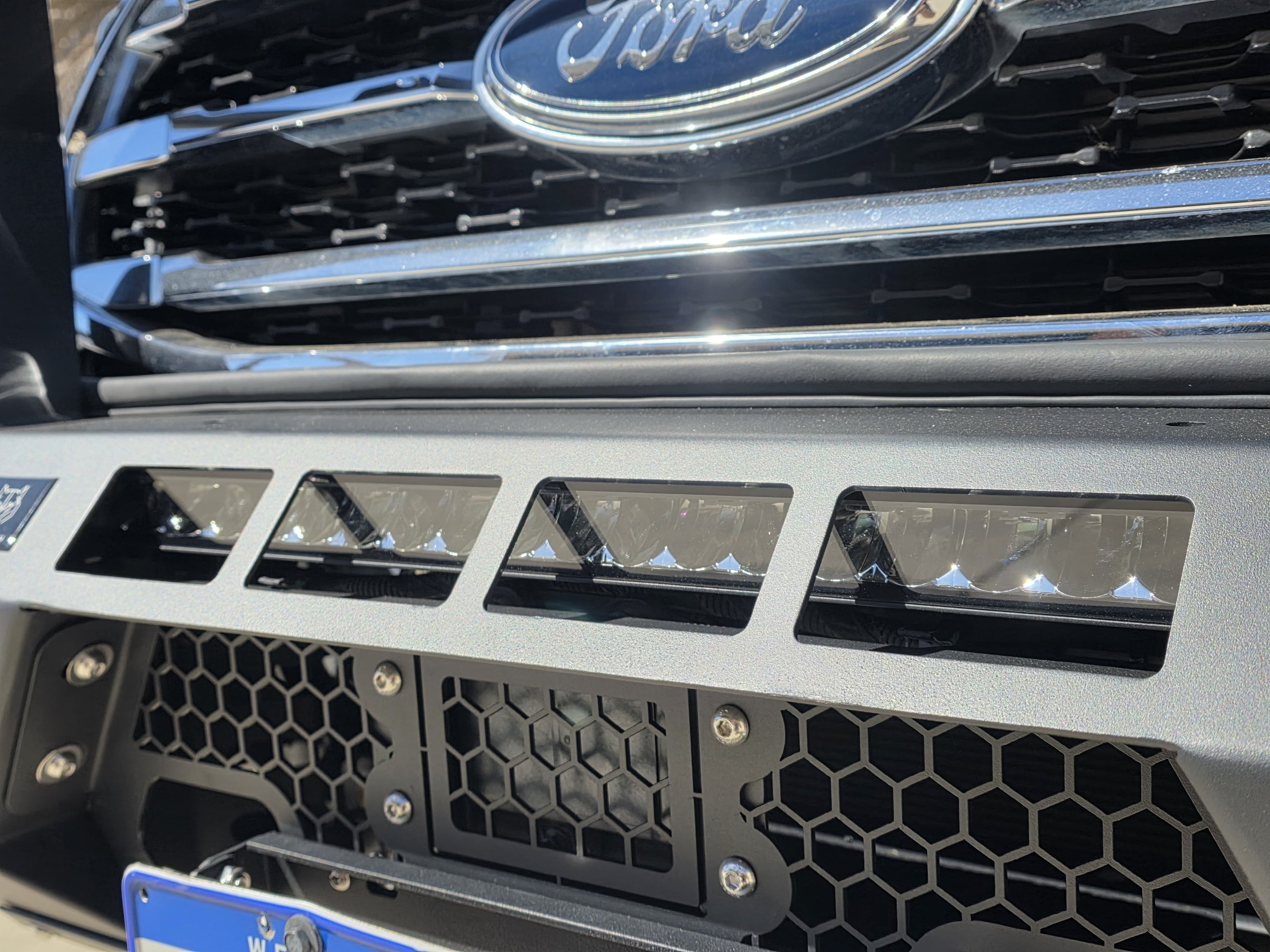

Easy Fitment
