22in lightbar specs
| Model | Apex Vision 22 |
| Optical | Driving beam |
| LED Brand | 5W Osram GW PLLRA1 PM |
| LEDs & Quantities | 20PCS |
| Color Temp.(CTT) | 5700K |
| Dimension | 558.6*40.7*60.7mm |
| Operation Temperature | -40℃---60℃ |
| Voltage | 10-30V DC |
| AMP DRAW | 1.4A@12V, 2.7A@24V |
| Theoretical Power | 100W |
| Effective Power | 64W |

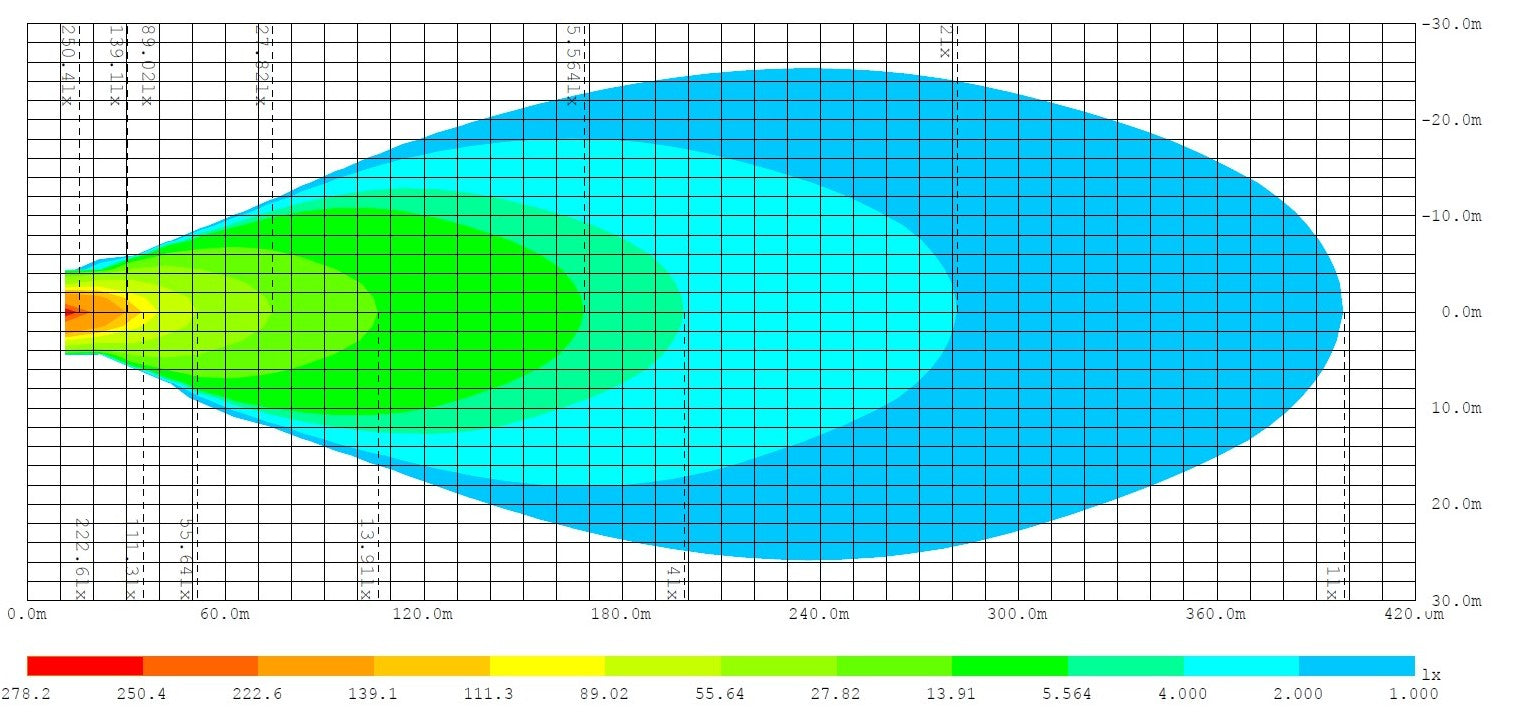

| 1 Lux Effective Distance | 400m |
| Theoretical Lumens | 10400 |
| Effective Lumens | 6553 |
| Raw Material(Housing) | Aluminum 6063 |
| Raw Material(lens&cup) | Polycarbonate |
| Mounting Side Bracket | 304 Stainless Steel with Black Powder Spraying 1 set |
| Mounting Bottom Bracket | Aluminum Black Sliding Bottom Bracket 2 set |
| Waterproof | IP68 |
| Theoretical Lifespan | 50000h |
⚠️ Wiring harness kits are not included.
Extreme Lumens
IP68 Weather Proof
Easy Fitment
