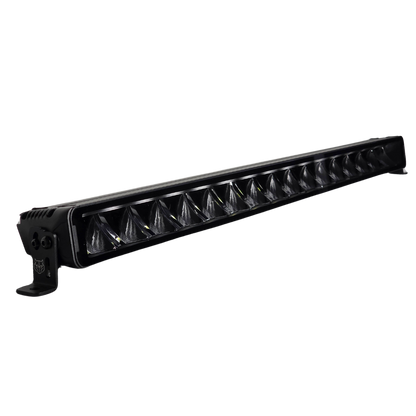

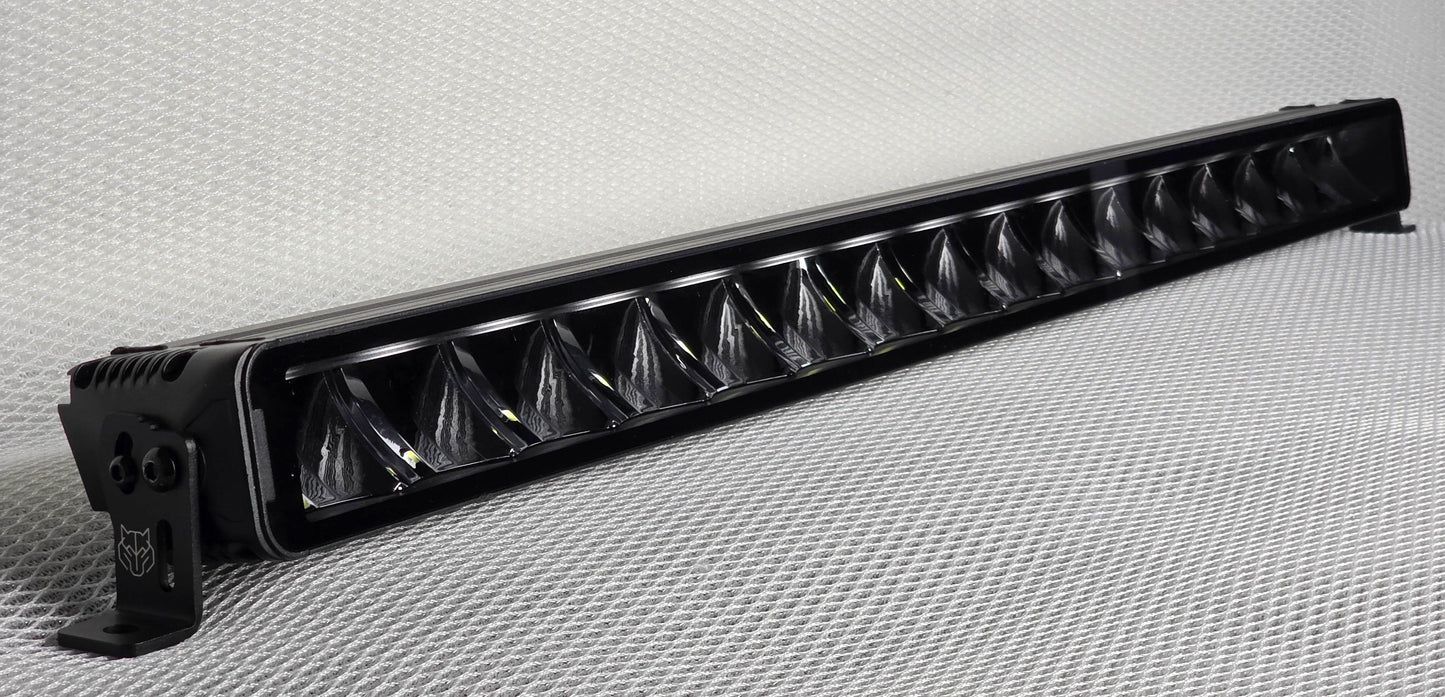

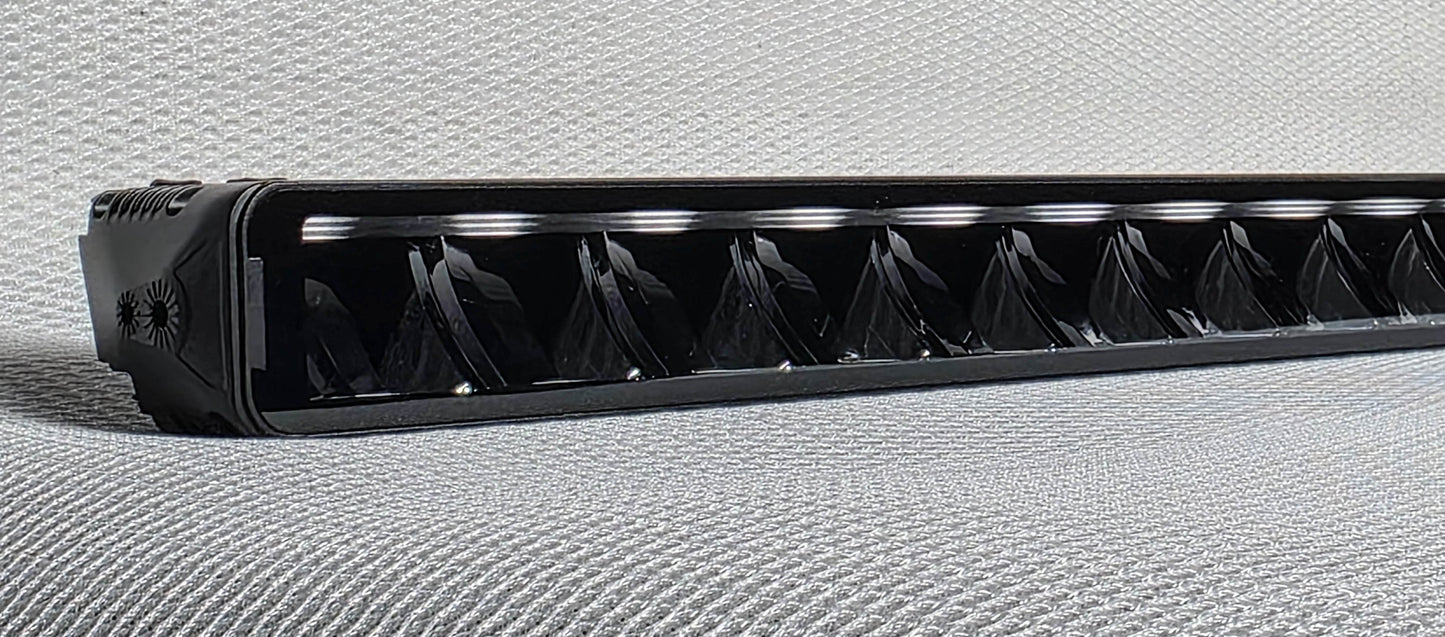

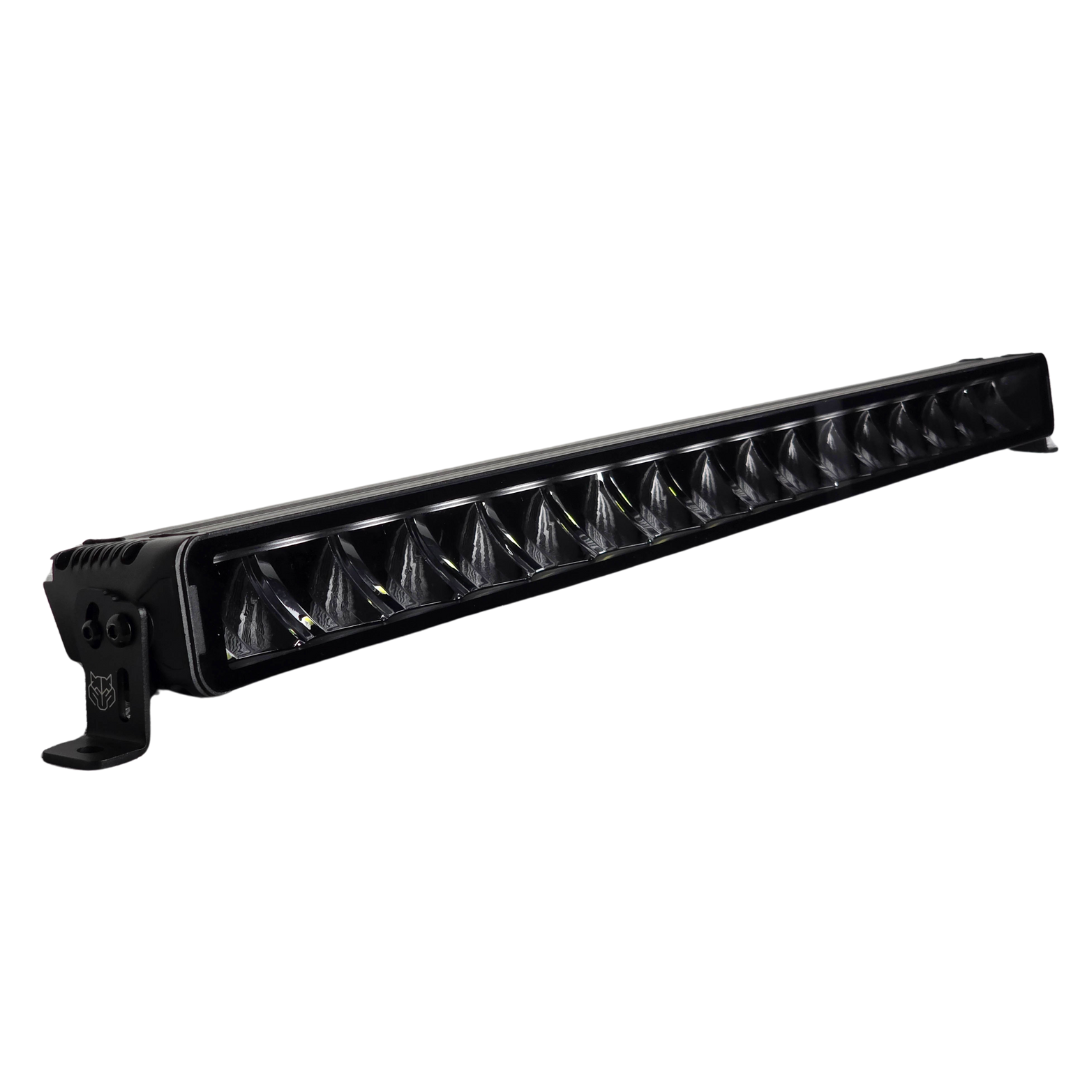

40in lightbar specs
| Model | Apex Vision 40 |
| Optical | Driving beam |
| LED Brand | 12W Lattice Power Chip |
| LEDs & Quantities | 16PCS |
| Colour Temp.(CTT) | 6000K |
| Dimension | 1017*66*78.4mm |
| Operation Temperature | -40℃---60℃ |
| Voltage | 10-30V DC |
| AMP DRAW | 13.33A@12V, 6.67A@24V |
| Theoretical Power | 192W |
| Effective Power | 170W |
| 1 Lux Effective Distance | 850meters |
| Theoretical Lumens | 20800 |
| Effective Lumens | 11700 |
| Raw Material(Housing) | Aluminum 6063 |

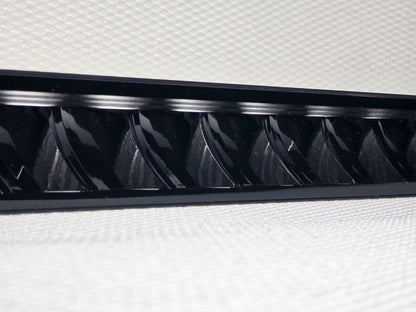

| Raw Material(lens&cup) | Polycarbonate |

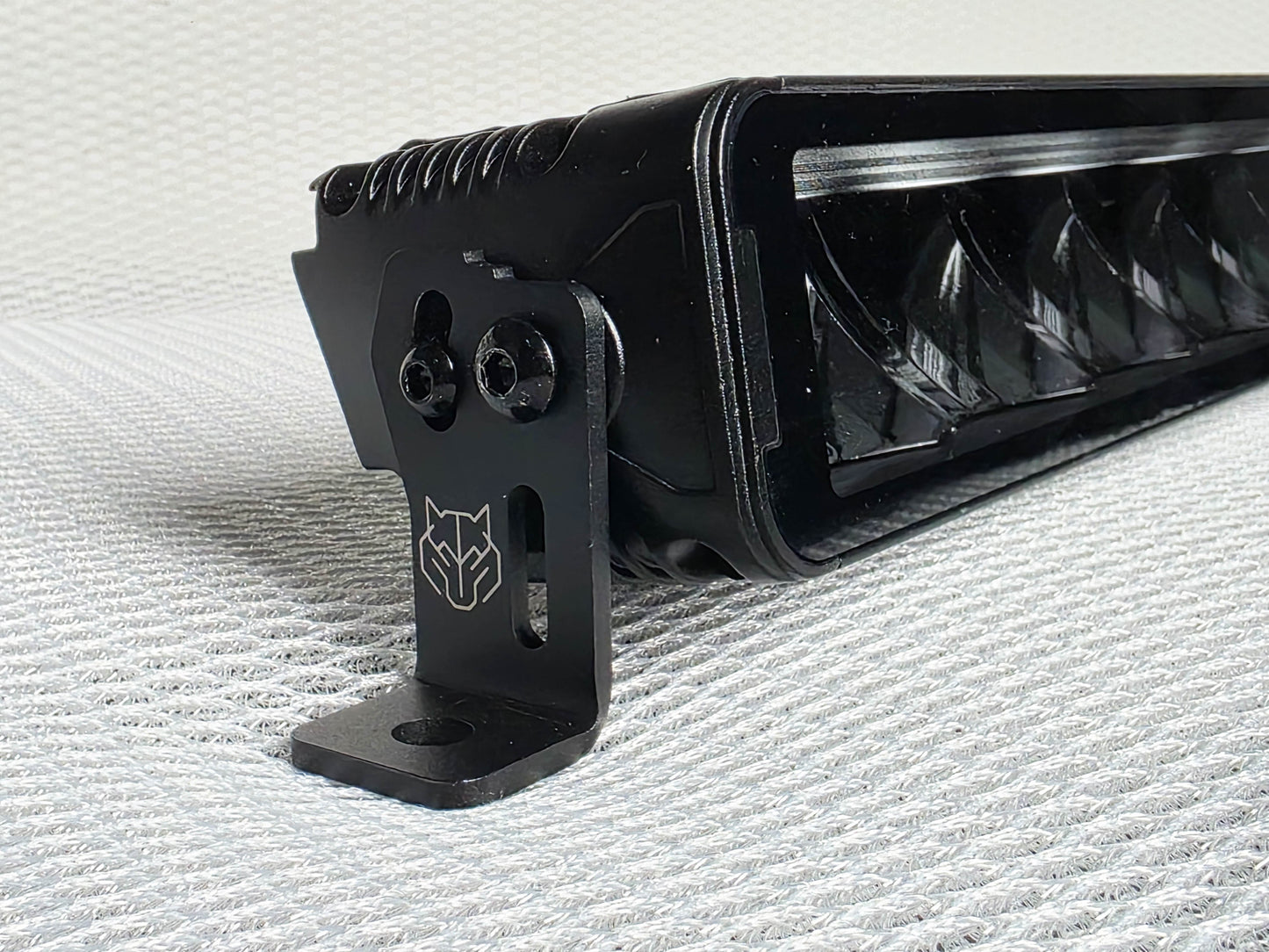

| Mounting Side Bracket | 304 Stainless Steel with Black Powder Spraying 1 set |
| Mounting Bottom Bracket | Aluminum Black Sliding Bottom Bracket 3 set |
| Waterproof | IP68 |
| Theoretical Lifespan | 50000h |
⚠️ Wiring harness kits are not included.
Extreme Lumens
IP68 Weather Proof
Easy Fitment
